Example with SEI layer
Preparation of the input
julia
using Jutul, BattMo, GLMakieWe use the SEI model presented in [1]. We use the json data given in bolay.json which contains the parameters for the SEI layer.
julia
cell_parameters = load_cell_parameters(; from_default_set = "Chen2020")
cycling_protocol = load_cycling_protocol(; from_default_set = "CCCV")
simulation_settings = load_simulation_settings(; from_default_set = "P2D")We have a look at the SEI related parameters.
julia
interphase_parameters = cell_parameters["NegativeElectrode"]["Interphase"]Dict{String, Any} with 8 entries:
"Description" => "EC-based SEI, from Bolay2022."
"ElectronicDiffusionCoefficient" => 1.6e-12
"InterstitialConcentration" => 0.015
"InitialThickness" => 1.0e-8
"IonicConductivity" => 1.0e-5
"StoichiometricCoefficient" => 2
"InitialPotentialDrop" => 0.5
"MolarVolume" => 9.586e-5We start the simulation and retrieve the result
julia
model_setup = LithiumIonBattery();
model_settings = model_setup.model_settings
model_settings["SEIModel"] = "Bolay"
cycling_protocol["TotalNumberOfCycles"] = 10
sim = Simulation(model_setup, cell_parameters, cycling_protocol; simulation_settings);
output = solve(sim)
states = output[:states]
t = [state[:Control][:Controller].time for state in states]
E = [state[:Control][:Phi][1] for state in states]
I = [state[:Control][:Current][1] for state in states]✔️ Validation of ModelSettings passed: No issues found.
──────────────────────────────────────────────────
✔️ Validation of CellParameters passed: No issues found.
──────────────────────────────────────────────────
✔️ Validation of CyclingProtocol passed: No issues found.
──────────────────────────────────────────────────
✔️ Validation of SimulationSettings passed: No issues found.
──────────────────────────────────────────────────
Jutul: Simulating 2 days, 2 hours as 3600 report steps
╭────────────────┬────────────┬────────────────┬──────────────╮
│ Iteration type │ Avg/step │ Avg/ministep │ Total │
│ │ 2635 steps │ 2806 ministeps │ (wasted) │
├────────────────┼────────────┼────────────────┼──────────────┤
│ Newton │ 3.04896 │ 2.86315 │ 8034 (2260) │
│ Linearization │ 4.11385 │ 3.86315 │ 10840 (2373) │
│ Linear solver │ 3.04896 │ 2.86315 │ 8034 (2260) │
│ Precond apply │ 0.0 │ 0.0 │ 0 (0) │
╰────────────────┴────────────┴────────────────┴──────────────╯
╭───────────────┬────────┬────────────┬─────────╮
│ Timing type │ Each │ Relative │ Total │
│ │ ms │ Percentage │ s │
├───────────────┼────────┼────────────┼─────────┤
│ Properties │ 0.0593 │ 1.90 % │ 0.4763 │
│ Equations │ 1.0979 │ 47.59 % │ 11.9014 │
│ Assembly │ 0.2048 │ 8.88 % │ 2.2202 │
│ Linear solve │ 0.5657 │ 18.17 % │ 4.5447 │
│ Linear setup │ 0.0000 │ 0.00 % │ 0.0000 │
│ Precond apply │ 0.0000 │ 0.00 % │ 0.0000 │
│ Update │ 0.1429 │ 4.59 % │ 1.1479 │
│ Convergence │ 0.1719 │ 7.45 % │ 1.8638 │
│ Input/Output │ 0.0471 │ 0.53 % │ 0.1321 │
│ Other │ 0.3385 │ 10.88 % │ 2.7195 │
├───────────────┼────────┼────────────┼─────────┤
│ Total │ 3.1125 │ 100.00 % │ 25.0059 │

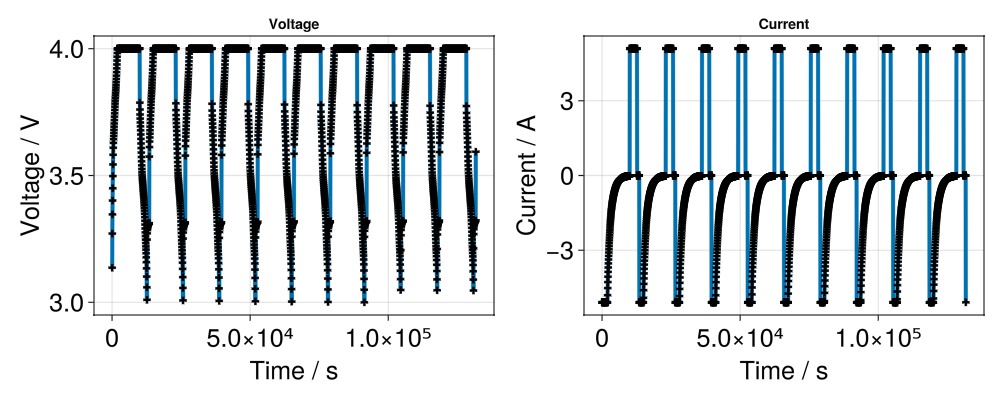

╰───────────────┴────────┴────────────┴─────────╯Plot of voltage and current
julia
f = Figure(size = (1000, 400))
ax = Axis(f[1, 1],
title = "Voltage",
xlabel = "Time / s",
ylabel = "Voltage / V",
xlabelsize = 25,
ylabelsize = 25,
xticklabelsize = 25,
yticklabelsize = 25,
)
scatterlines!(ax,
t,
E;
linewidth = 4,
markersize = 10,
marker = :cross,
markercolor = :black,
label = "Julia",
)
ax = Axis(f[1, 2],
title = "Current",
xlabel = "Time / s",
ylabel = "Current / A",
xlabelsize = 25,
ylabelsize = 25,
xticklabelsize = 25,
yticklabelsize = 25,
)
scatterlines!(ax,
t,
I;
linewidth = 4,
markersize = 10,
marker = :cross,
markercolor = :black,
label = "Julia",
)

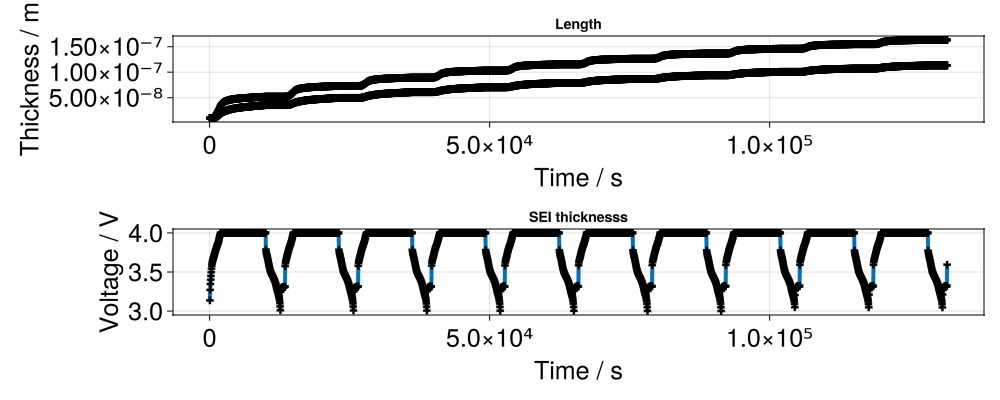

Plot of SEI thickness
We recover the SEI thickness from the state output
julia
seilength_x1 = [state[:NeAm][:SEIlength][1] for state in states]
seilength_xend = [state[:NeAm][:SEIlength][end] for state in states]
f = Figure(size = (1000, 400))
ax = Axis(f[1, 1],
title = "Length",
xlabel = "Time / s",
ylabel = "Thickness / m",
xlabelsize = 25,
ylabelsize = 25,
xticklabelsize = 25,
yticklabelsize = 25,
)
scatterlines!(ax,
t,
seilength_x1;
linewidth = 4,
markersize = 10,
marker = :cross,
markercolor = :black)
scatterlines!(ax,
t,
seilength_xend;
linewidth = 4,
markersize = 10,
marker = :cross,
markercolor = :black)
ax = Axis(f[2, 1],
title = "SEI thicknesss",
xlabel = "Time / s",
ylabel = "Voltage / V",
xlabelsize = 25,
ylabelsize = 25,
xticklabelsize = 25,
yticklabelsize = 25,
)
scatterlines!(ax,
t,
E;
linewidth = 4,
markersize = 10,
marker = :cross,
markercolor = :black)
Plot of voltage drop
julia
u_x1 = [state[:NeAm][:SEIvoltageDrop][1] for state in states]
u_xend = [state[:NeAm][:SEIvoltageDrop][end] for state in states]
f = Figure(size = (1000, 400))
ax = Axis(f[1, 1],
title = "SEI voltage drop",
xlabel = "Time / s",
ylabel = "Voltage / V",
xlabelsize = 25,
ylabelsize = 25,
xticklabelsize = 25,
yticklabelsize = 25,
)
scatterlines!(ax,
t,
u_x1;
linewidth = 4,
markersize = 10,
marker = :cross,
markercolor = :blue,
label = "xmin")
scatterlines!(ax,
t,
u_xend;
linewidth = 4,
markersize = 10,
marker = :cross,
markercolor = :black,
label = "xmax")Plot{Makie.scatterlines, Tuple{Vector{Point{2, Float64}}}}Plot of the lithium content
julia
u_x1 = [state[:NeAm][:SEIvoltageDrop][1] for state in states]
u_xend = [state[:NeAm][:SEIvoltageDrop][end] for state in states]
f = Figure(size = (1000, 400))
ax = Axis(f[1, 1],
title = "SEI voltage drop",
xlabel = "Time / s",
ylabel = "Voltage / V",
xlabelsize = 25,
ylabelsize = 25,
xticklabelsize = 25,
yticklabelsize = 25,
)
scatterlines!(ax,
t,
u_x1;
linewidth = 4,
markersize = 10,
marker = :cross,
markercolor = :blue,
label = "xmin")
scatterlines!(ax,
t,
u_xend;
linewidth = 4,
markersize = 10,
marker = :cross,
markercolor = :black,
label = "xmax")Plot{Makie.scatterlines, Tuple{Vector{Point{2, Float64}}}}Example on GitHub
If you would like to run this example yourself, it can be downloaded from the BattMo.jl GitHub repository as a script.
This page was generated using Literate.jl.
